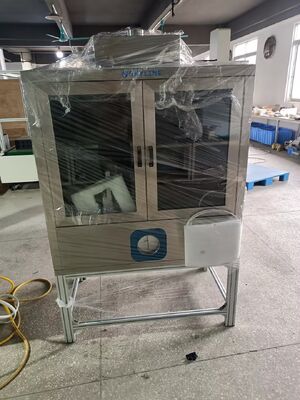

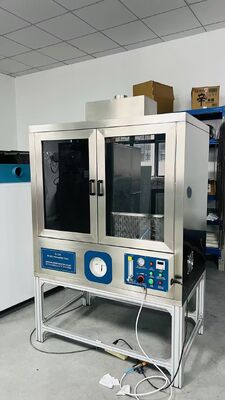

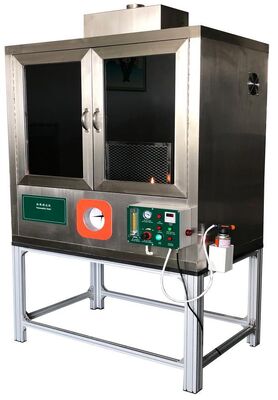

BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture

BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture

Nome da marca: Skyline
Número do modelo: SL-S34
MOQ: 1
Termos de pagamento: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Capacidade de fornecimento: 15 séries por mês
Informações Detalhadas
Lugar de origem:
China
Certificação:
CE, Rosh, Calibration
Quadro de ensaio pequeno de aço inoxidável:
450 x 300 x 150 mm
Dimensões internas do quadro do encosto:
450 ± 2 × 450 ± 2 mm
Dimensões internas do quadro da cadeira:
450 ± 2 × 300 ± 2 mm
Grande máquina de teste de aço inoxidável:
450 x 450 x 300 mm
O fluxo de ar do butano:
45 ± 2 mL/min (quando a temperatura for de 25°C)
Altura da chama:
35 mm
Diâmetro exterior do tubo de combustão de aço inoxidável:
Diâmetro externo: 8,0 ± 0,1 mm Diâmetro interno: 6,5 ± 0,1 mm Comprimento: 200+/-5 mm
Detalhes da embalagem:
caixa de madeira compensada
Habilidade da fonte:
15 séries por mês
Destacar:

Stainless Steel Frame Flammability Tester

,

35mm Flame Height BS 5852 Tester

,

450X450X300mm Testing Jig Furniture Flammability Tester

Descrição do produto
BS 5852 Flammability Tester for Upholstered Furniture and Foam Testing
This professional testing equipment evaluates the ignitability of furniture assemblies when exposed to specific heat sources, providing essential reference data for furniture design and manufacturing.
BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture 0 BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture 1
Design Overview
BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture 2
Product Application
This machine simulates the ignitability of specific furniture assembly components when exposed to controlled heat sources, delivering critical reference data for furniture design and manufacturing processes.
Testing Standard
BS 5852
Technical Specifications
Small Stainless Steel Testing Frame: 450×300×150mm
Inner dimensions of backrest frame 450±2×300±2mm
Inner dimensions of chair frame 450±2×150±2mm
Large Stainless Steel Testing Jig: 450×450×300mm
Inner dimensions of backrest frame 450±2×450±2mm
Inner dimensions of chair frame 450±2×300±2mm
The airflow of butane 45 ± 2mL / min (when 25℃)
Flame height 35mm
Stainless steel combustion tube specifications Outer diameter: 8.0±0.1mm
Inner diameter: 6.5±0.1mm
Length: 200±5mm
Optional Accessories
  • No. 0 Fire source: Cigarettes - Length: 68mm, Diameter: 8mm, Weight: 1g, Combustion speed: 50mm/12.03min
  • White polyester cloth - BS 5852
  • Wooden Frame - BS 5852
  • No. 5 Wooden Frame - BS 5852
  • No. 6 Wooden Frame - BS 5852
  • No. 7 Wooden Frame - BS 5852
  • Flame-retardant foam - BS 5852
  • Combustible foam - BS 5852
  • CaCI2.6H20 - BS 5852
  • NaHCO3 - BS 5852
  • Wetting agent - BS 5852
  • Nozzles - BS 5852
