Name: EN71-1 / ISO 8124-1 Compliant 1.35LB Sharp Edge Testing Machine with 220V Power Supply for Toys Safety
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-S12
Price: 4,500.00 USD
Availability: InStock

Casa Produtos equipamento do teste de laboratório

EN71-1 / ISO 8124-1 Compliant 1.35LB Sharp Edge Testing Machine with 220V Power Supply for Toys Safety

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	SKYLINE
Certificação:	CE
Número do modelo:	SL-S12

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Preço:	negociável
Detalhes da embalagem:	Caixa de madeira poli
Tempo de entrega:	3-5 dias de trabalho
Termos de pagamento:	T/T.
Habilidade da fonte:	1 grupo/semana

Contato

Descrição de produto detalhada

Fonte de energia:	220V,60Hz (pode ser personalizado)	Garantia:	12 meses, 1 ano, um ano
Peso:	Sobre 13Kg	Aplicativo:	Brinquedo infantil, produto infantil
Padrões:	EN71-1/ASTM F 963/16CFR1500.49/ISO 8124-1	Capacidade:	1,00 lbf/1,35 lbf/1,5 lbf (pode ser personalizado)
Cor:	Cinza e branco, cinza	Dimensão:	290x180x115mm
Destacar:	EN71-1 / ISO 8124-1 compliant Sharp Edge Testing Machine , 1.35LB capacity Toys Testing Equipment , 220V power supply EN71-1 Testing Machine

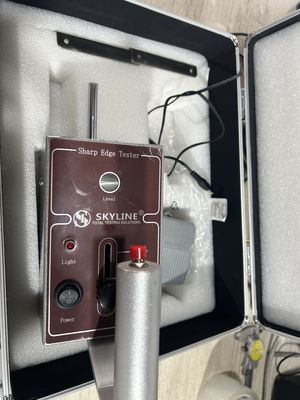

Manual or Foot-Operated EN71-1 / ISO 8124-1 Toys Testing Equipment - 1.35LB Sharp Edge Testing Machine

Machine Introduction

This testing equipment determines whether toy edges present an unreasonable risk of injury by identifying hazardous sharp edges according to international safety standards.

Product Information

The tester evaluates accessible edges on toys to determine injury potential. A PTFE tape-coated mandrel rotates 360° along the test edge. If the tape is cut ≥13mm (50% of circumference), the edge is classified as hazardous. This test is mandatory for toys intended for children under 8 years, both before and after use/abuse testing.

Test Principle

The hardened steel shaft (simulating children's fingers) meets strict specifications:

Surface Rockwell hardness: ≥40
Surface roughness: ≤0.40 microns
Diameter: 9.35mm ± 0.12mm
Applied force: 6N (1.35lb) at 23mm/sec ±4mm/sec rotation speed

The test edge is classified as hazardous if it cuts through the simulated skin tape during rotation.

Testing Procedure & Results Interpretation

Apply PTFE tape to mandrel and rotate 360° along test edge
Edge is hazardous if tape is cut ≥50% of circumference
Test only accessible edges identified during toy evaluation
For untestable edges, simulate conditions or test components separately
Maintain perpendicular alignment and consistent pressure during testing

Technical Specifications

Dimensions (LWH)	291910cm
Weight	3.5kg
Speed	1.00±0.08 In/s
Applied Force	1.35LB
Material	Stainless Steel
Accessories	PTFE Tape Set, Foot Switch, Power Charger, Operating Manual
Compliance Standards	ASTM F963 4.7, EN 71-1 8.11, 16 CFR 1500.49, ISO 8124-1 5.8
